Name：ZYL-YS1-D1-C Egg processing line (302BS)

Product Code： 10,000 eggs/hour

Capacity： 302BS

Function： Water bath (for egg loading), egg washing, drying, grading, counting and manual collection

Details

Features:

-- Made of stainless steel for better durability, corrosion resistance and hygiene.

-- Zenyer 302BS Duck egg processing line consists of Zenyer 202B egg washer and the 104B egg grader with

a capacity of 10,000 eggs/hour.

-- It designed for DUCK egg processing, and satisfied duck egg cleaning and drying requirements well.

-- Includes a water bath (for egg loading), washing and drying, grading, counting and manual collection functions,

and optional candler and UV sterilization.

-- The 202B egg washer is equipped a free standing control panel, and the 104B egg grader has a color touchscreen

control panel, they are interlock controlled with each other for safety reasons.

-- Pour the whole box or tray of eggs into the water bath, and the eggs will be transported into washing system

through the conveyor. This loading method not only saves time but also minimizes egg cracks by using buoyancy.

Plus, eggs are easier to wash after running through a water bath.

DUCK egg processing line
Model	ZYL-YS1-D1-C
Product code	302BS
Capacity	10,000 eggs/hour
Accuracy	±1 g
Grade	6
Power*	12.32 KW
Voltage	380-415V, 3-phase, 50HZ
Dimension (L*W*H)	11.9*1.7*2 M
Net weight*	1150 kg
Gross weight*	1640 kg
Function	Water bath (for egg loading), egg washing, drying, grading, counting and manual collection, and optional candler, UV sterilization

* Power, net weight and gross weight are calculated according to the floor plan below.

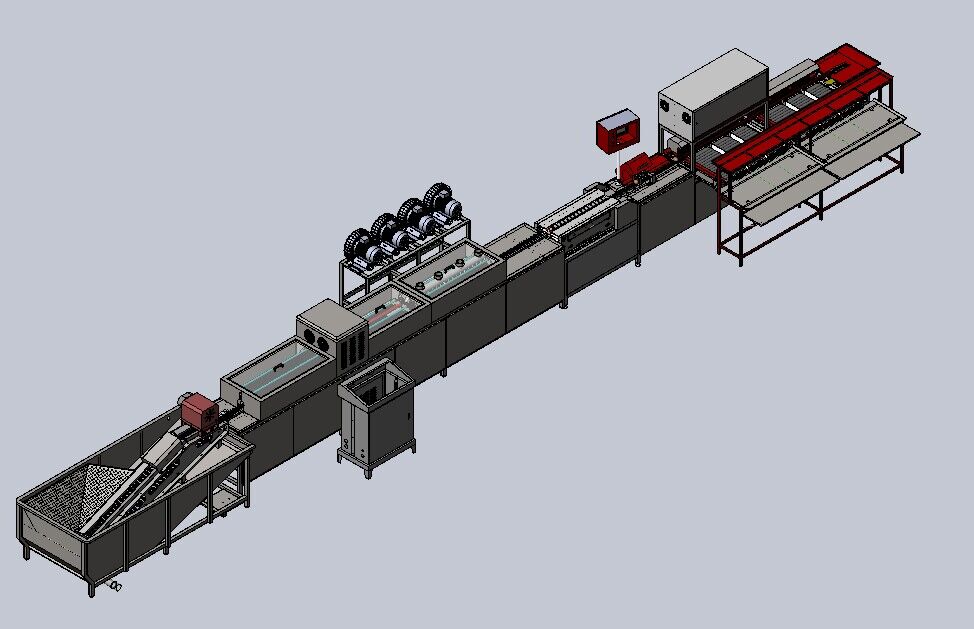

ZENYER 302BS Duck egg processing line

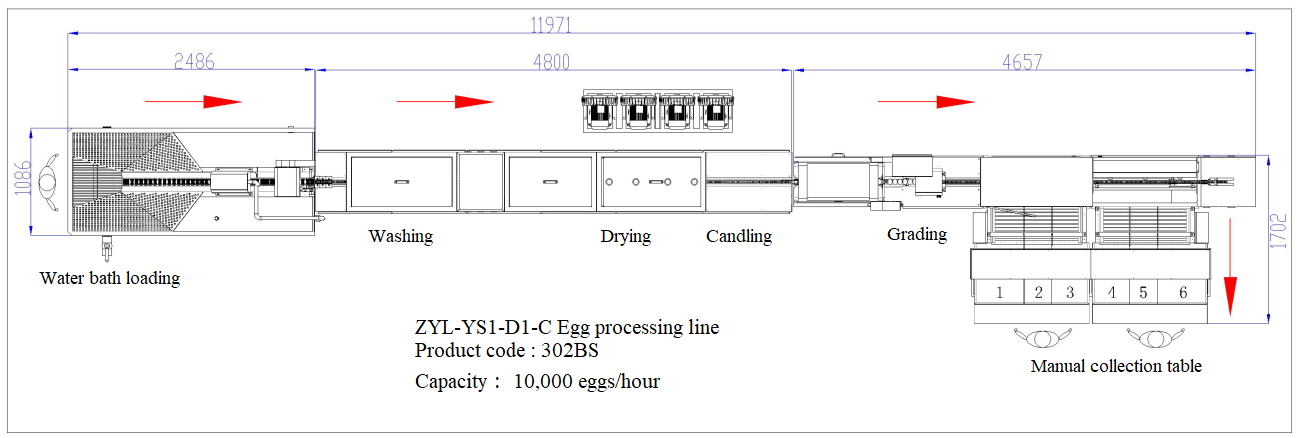

Floor plan
ZENYER 202B duck egg washerWater bath for egg loading

Remarkable Drying system

Control panel (Egg washer)

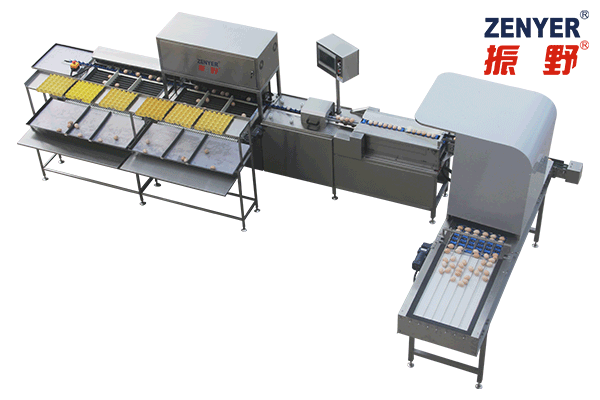

ZENYER 104B egg grader with 605A accumulator

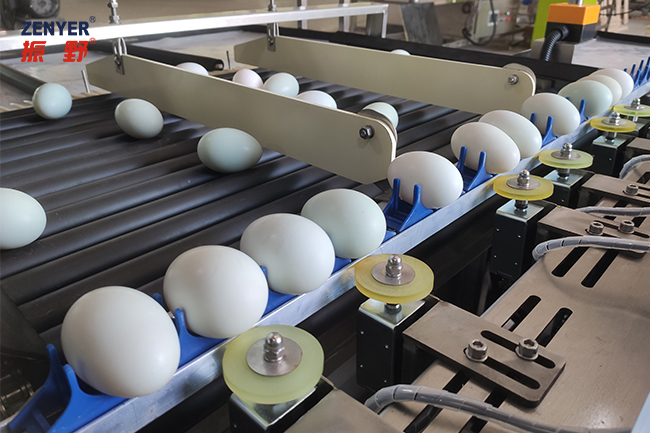

Electronic weighing

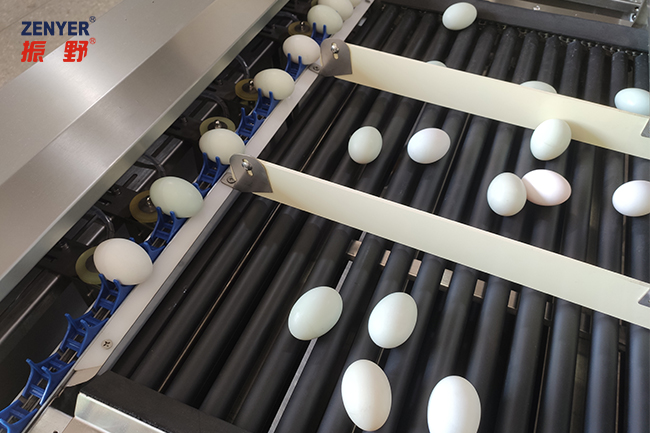

Grading
Manual collection
Control panel (Egg grader)





(Pre-Order)

ZYL-YS1-D1-C Egg processing line (302BS) Brochure
