Name: ZENYER XBE30 egg farm packer (713AS)
Product Code: 713AS
Capacity: 30,000 eggs/hour
Function: Egg accumulating, de-nesting and auto packing
You’ll be redirected to our official online store to complete your purchase. Visit our FAQ to learn more
Details
Features:
-- Designed to connect to a rod conveyor leading from a chicken shed, the eggs from the chicken shed flow to the accumulator of the farm packer directly.
-- Includes egg accumulation, orientation(head turning), counting, de-nesting, automatic packing and tray stacking functions all in one.
-- Head turning makes sure the eggs are perfectly orientated with the bigger head (air chamber) on top for longer storage before getting packed.
-- Packs eggs into 5*6 trays automatically with a capacity of 30,000 eggs/hour.
-- This model of farm packer equips a de-nester which can de-nest empty trays automatically and send them
to where the eggs will drop from.
-- This system includes a ZENYER 617 robotic tray stacker. This feature automates the process of stacking egg trays into uniform piles.
Once stacked, the operator can easily collect these loaded stacks from the belt conveyor of the robotic stacker.
-- The compact size of this machine makes it a great fit for small packing rooms.
| Model | XBE30 |
| Product code | 713AS |
| Capacity | 30,000 eggs/hour |
| Main material | Stainless steel |
| Power | 1.23 KW |
| Voltage | 220-240V, single-phase,50HZ |
| People | 1 |
| Dimension（L*W*H） | 3410 * 1956 * 920 mm |
| Function | Egg accumulation, head turning(orientation), counting, de-nesting and auto packing (5*6 egg tray), and a robotic tray stacker |
The ZENYER 713AS Farm packer
The ZENYER 713AS floor plan (with a robotic tray stacker)

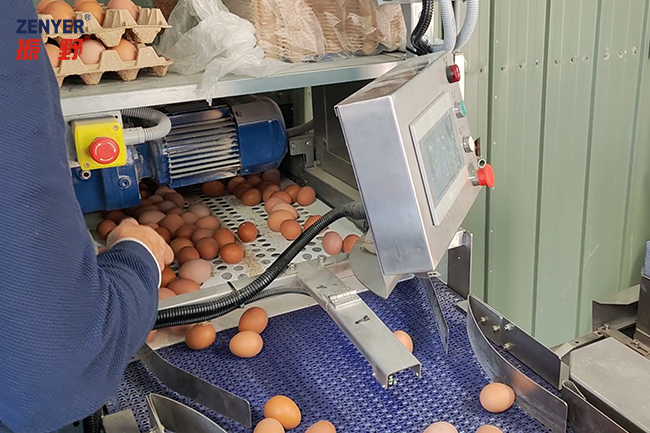

Accumulator (connect to a rod conveyor from chicken shed)
Accumulator(connect to an egg belt from chicken shed)
Orienter (head turning)
De-nester
Automatic packer
Robotic stacker- Lifting
Robotic stacker- Stacking
Robotic stacker- Belt conveying
Control panel
Price of the ZENYER 713AS egg farm packer (tray stacker included): Only $118,800.00
Optional:
-- Air compressor (7.5KW): Only $5,500.00
(supply the air needed to run the Robotic Tray Stacker)
Price including GST
(Pre-order)
ZENYER XBE30 egg farm packer (713AS) Brochure
