Name: ZENYER XBF30 egg farm packer (713B)
Product Code: 713B
Capacity: 36,000 eggs/hour
Function: Accumulation, auto packing, de-nesting and stacking
You’ll be redirected to our official online store to complete your purchase. Visit our FAQ to learn more
Details
Features:
-- Brand New 2025 version of ZENYER farm pack, a new design for a more gentle egg packing method.
-- The ZENYER 713B farm packer features ZENYER's patented design and introduces an entirely new egg packing
method, this innovative approach allows eggs to glide smoothly into the tray cells, significantly reducing breakage
compared to traditional farm packers.
-- Designed to connect to a rod conveyor leading from a chicken shed, the eggs from the chicken shed flow to the accumulator of the farm packer directly.
-- Includes egg accumulation, orientation(head turning), counting, de-nesting, automatic packing and tray stacking
functions all in one.
-- Head turning makes sure the eggs are perfectly orientated with the bigger head (air chamber) on top for longer storage before getting packed.
-- Packs eggs into 5*6 trays automatically with a capacity of 36,000 eggs/hour.
-- This model of farm packer equips a de-nester which can de-nest empty trays automatically and send them
to where the eggs will drop from.
-- This system includes a ZENYER 617 robotic tray stacker. This feature automates the process of stacking egg
trays into uniform piles. Once stacked, the operator can easily collect these loaded stacks from the belt conveyor of
the robotic stacker.
-- The compact size of this machine makes it a great fit for small packing rooms.
| Model | XBF30 |
| Product code | 713B |
| Capacity | 36,000 eggs/hour |
| Main material | Stainless steel |
| Power | 4.5KW (air compressor excluded) |
| Voltage | 220-240V, single-phase, 50HZ |
| People | 1 |
| Dimension（L*W*H） | 3940 * 2125 * 800 mm |
| Function |
Egg accumulation, head turning(orientation), counting, de-nesting and auto packing (5*6 egg tray), and a robotic tray stacker |

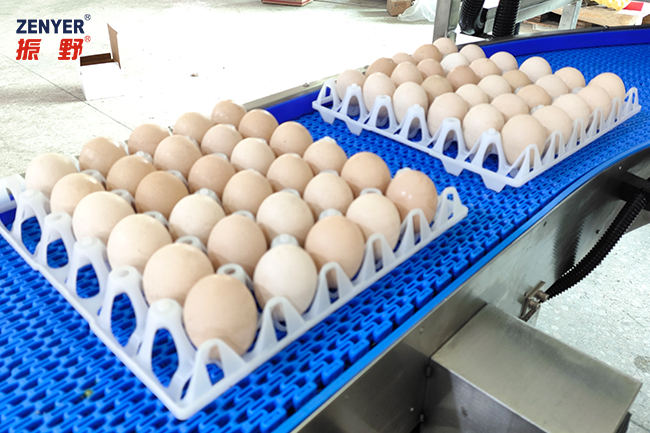

The ZENYER 713B Farm Packer
The ZENYER 713B Farm Packer (with a robotic tray stacker)

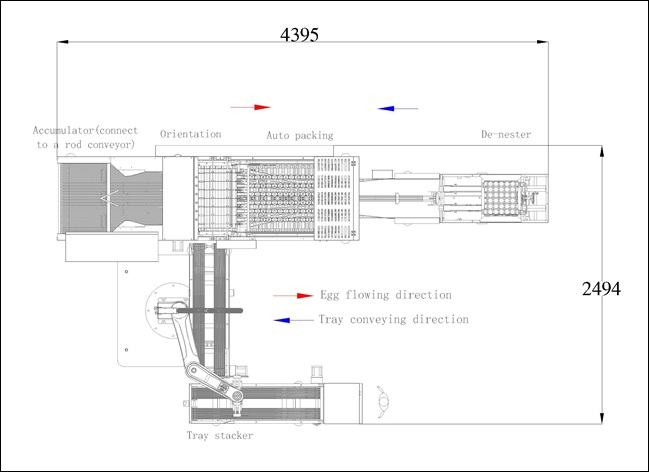

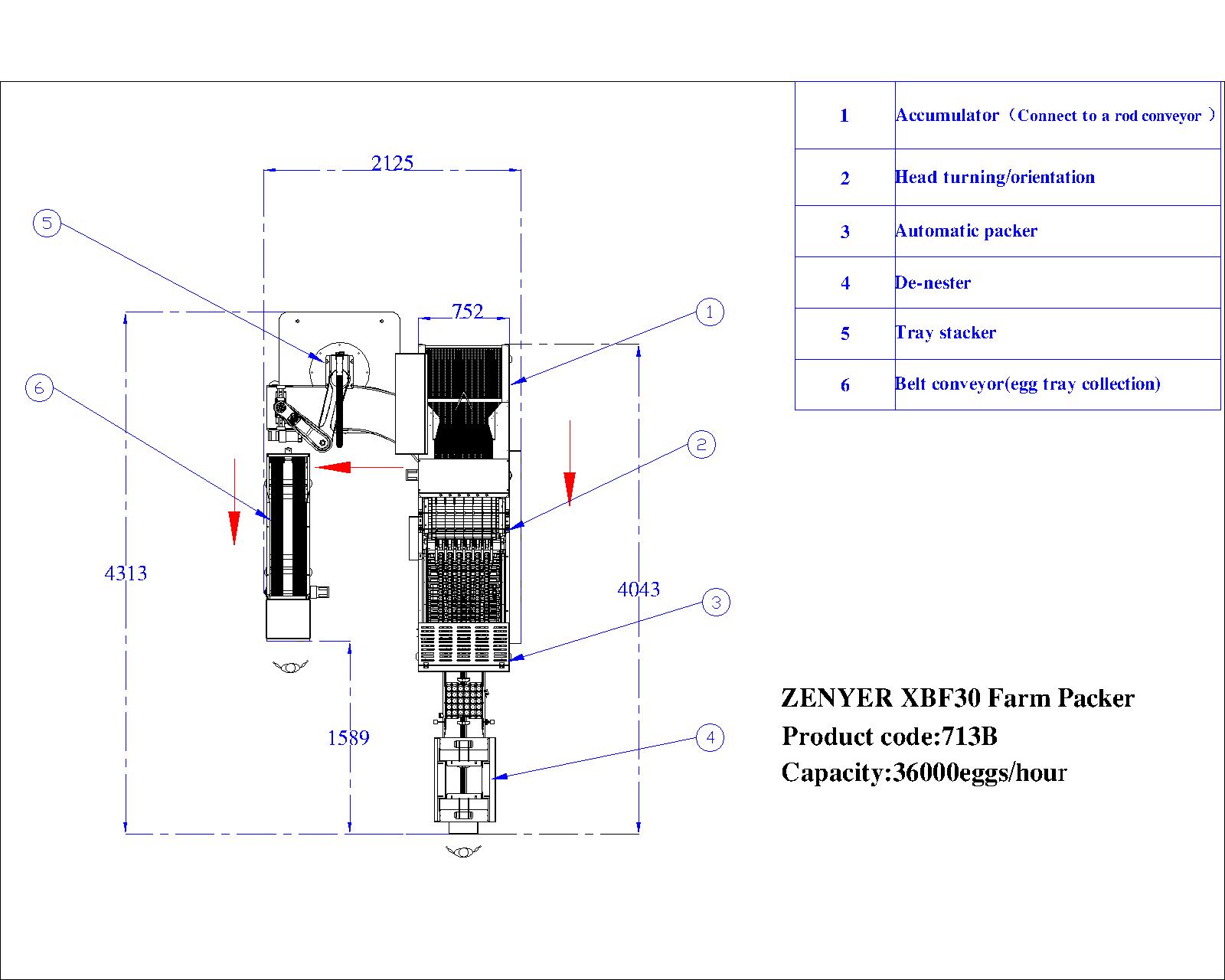

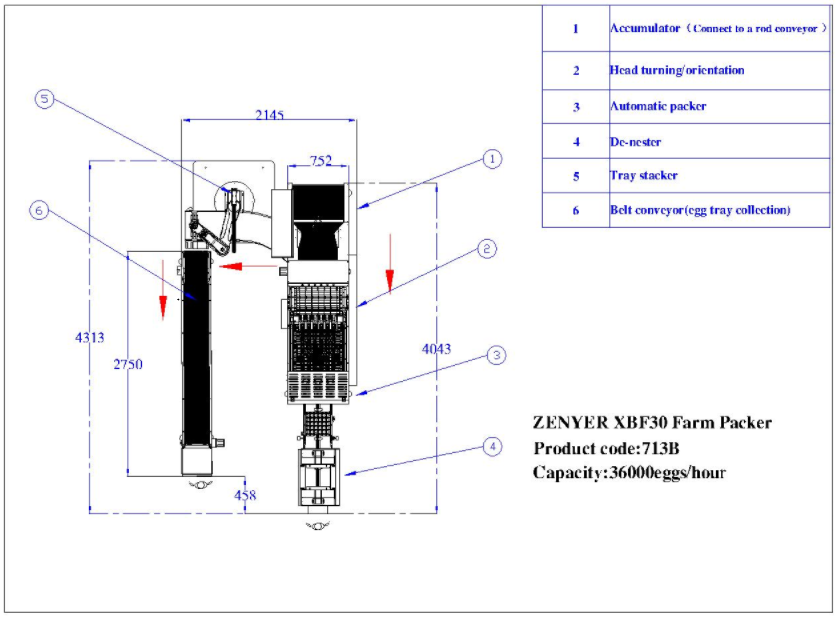

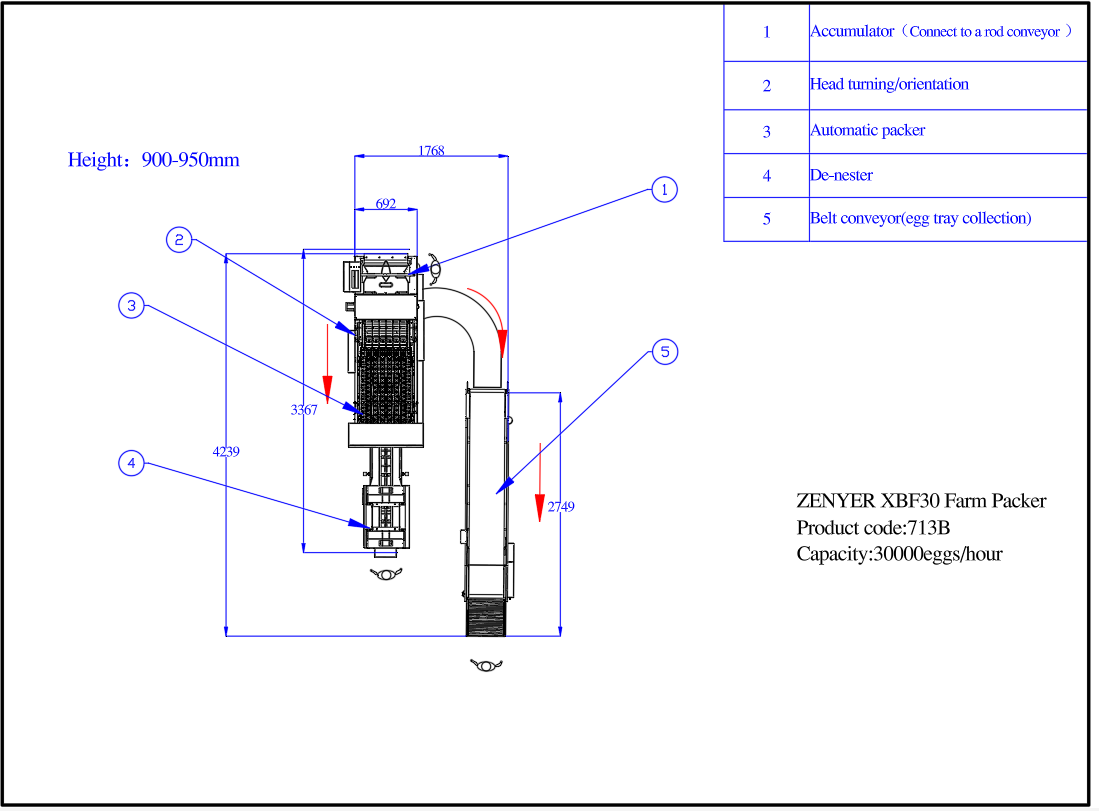

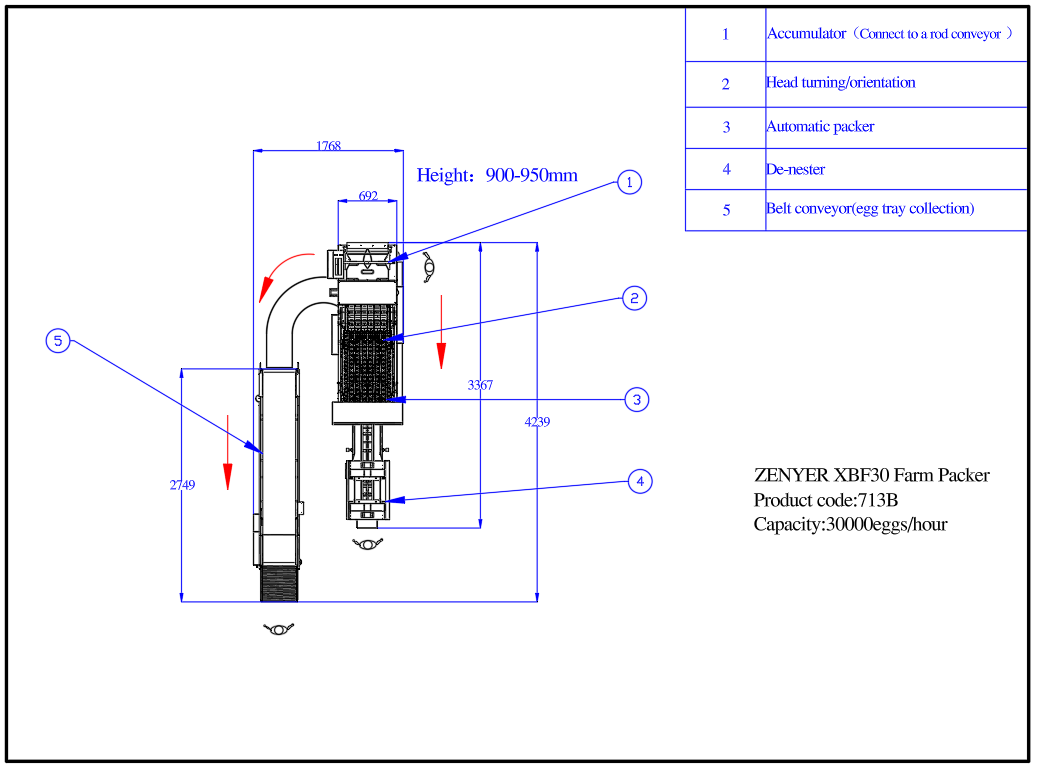

The ZENYER 713B Farm Packer floor plan
Accumulator (connect to an egg belt from chicken shed)

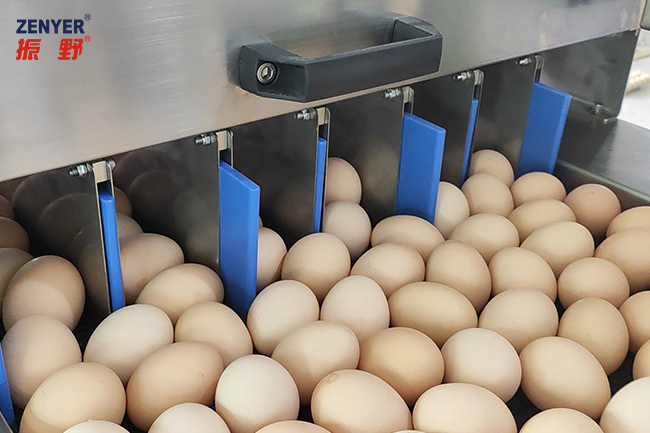

Lane Divider

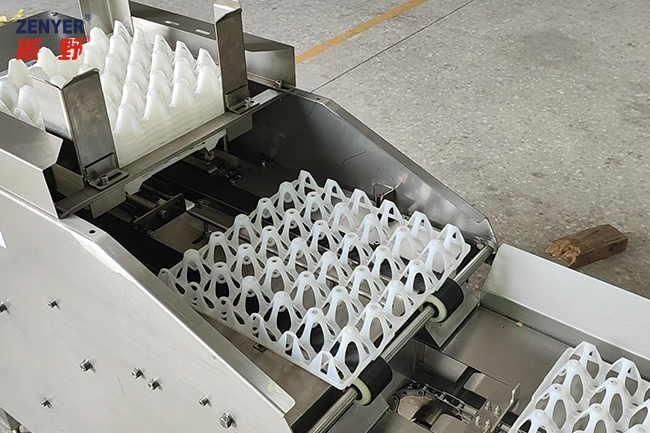

De-nester

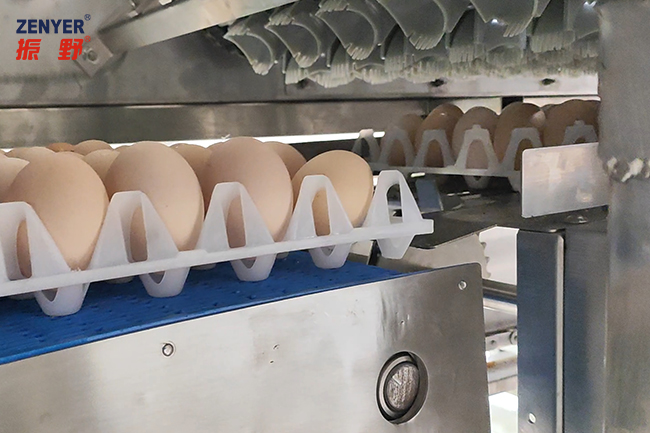

Auto-packer
Robotic stacker- Lifting
Robotic stacker- Stacking
Robotic stacker- Belt conveying
Control panelPrice of the ZENYER 713B Farm Packer (tray stacker included): Only $118,800.00
Optional:
-- Air compressor (7.5KW): Only $5,500.00
(supply the air needed to run the Robotic Tray Stacker)
Price including GST
(Pre-order)
ZENYER XBF30 egg farm packer (713B) Brochure
