Name: ZYS-ZK-2J30 Automatic Egg Loader (615A)
Product Code: 615A
Capacity: 60,000 eggs/hour
Function: Automatic egg loading, 60 eggs/time
You’ll be redirected to our official online store to complete your purchase. Visit our FAQ to learn more
Details
High-Capacity, Dual-Head Loading System
The ZENYER 615A features two double lifter heads for fast, efficient egg handling with a capacity of up to 60,000 eggs per hour, making it ideal for high-volume operations.
Fully Integrated Loading Solution
Includes:
Stack Tray Loading Conveyor (Conveyor 1)
Two Double Lifter Heads (Lifter Head 1 & 2)
Single Tray Conveyor (Conveyor 2)
Empty Tray Nester
Together, these components automate tray unloading, egg transfer, and empty tray stacking.
Efficient Tray & Egg Transfer
Stacks of trays (up to 6 trays per stack) are manually loaded onto Conveyor 1.
Lifter Head 1 lifts two trays at once and transfers them to Conveyor 2.
Lifter Head 2 gently lifts 2 × 30 eggs per cycle and loads them onto the grader roller conveyor, ensuring smooth and gentle handling.
Automatic Empty Tray Nesting
Once the eggs are removed, trays are automatically transported to two tray nesters for efficient stacking, saving time and labor.
Stuck Egg Detection System
Equipped with a stuck egg detector on Conveyor 2 to ensure no eggs are left behind.
If eggs remain on a tray, that tray is diverted for manual inspection instead of being stacked, preventing contamination or damage.
User-Friendly Controls
Operated via a color touchscreen and physical buttons, offering easy access to settings and diagnostics.
Includes a self-diagnosis system to quickly detect and resolve malfunctions, reducing downtime.
Gentle, Flexible, and Reliable
Designed to handle both pulp and plastic trays without causing cracks or damage.
Can be seamlessly integrated into new or existing egg grading systems to improve overall line efficiency.
Boosts Efficiency & Reduces Labor
Fully automates the tray unloading, egg loading, and empty tray stacking processes, reducing the need for manual handling and increasing overall productivity.
Remote Monitoring & Diagnostics (Wi-Fi Ready PLC Control System)
Supplied with a Wi-Fi repeater, enabling remote monitoring and diagnostics via the internet. In the event of software-related issues, our service team can access the system remotely (with customer permission) to quickly troubleshoot and resolve problems, helping minimize downtime and maintain continuous, efficient operation.
| Model | ZYS-ZK-2J30 |
| Product code | 615A |
| Capacity | 60,000 eggs/hour |
| Main material | Stainless steel |
| Power | 9.38 KW |
| Voltage | 380~415V, 3 phase, 50HZ |
| People | 1 |
| Dimension（L*W*H） | 4.47*2.33*2 M |
| Function | Automatic egg loading and empty tray nesting |

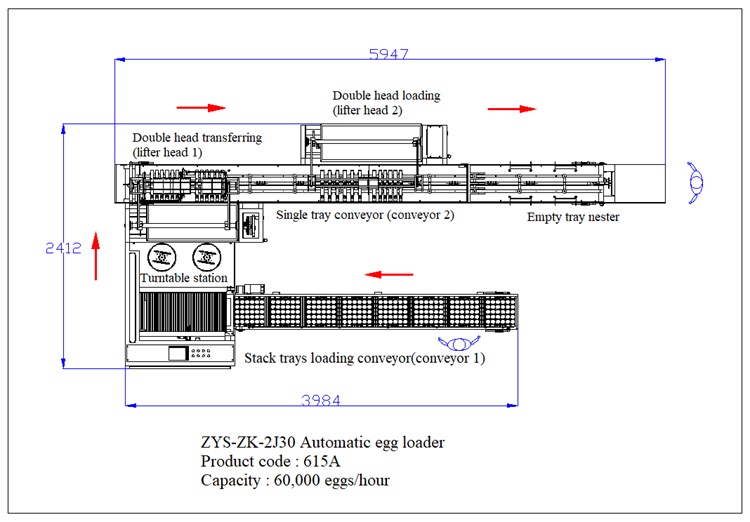

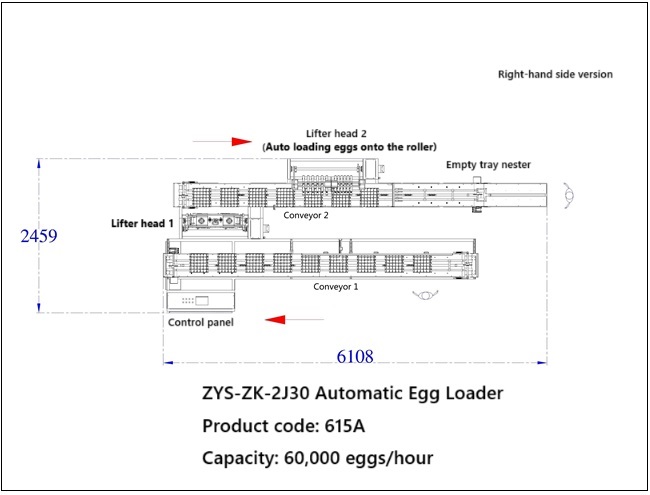

615A Floor plan- Right hand side
Price of ZENYER 615A automatic egg loader (double head loader): Only $88,000.00
Optional:
-- Air compressor (3KW):Only $2,750.00
(supply the air needed to run the Automatic Egg Loader)
Price including GST
(Pre-order)
ZYS-ZK-2J30 Automatic Egg Loader (615A) Brochure
