Name：ZYS-DT-30 Robotic Stacker (617)
Product Code： 617
Capacity： 30,000 eggs/hour
Function： Robot stacks 6 trays into a uniform stack
Details
Price including GST, exclude air compressor
(Pre-order)
Features:

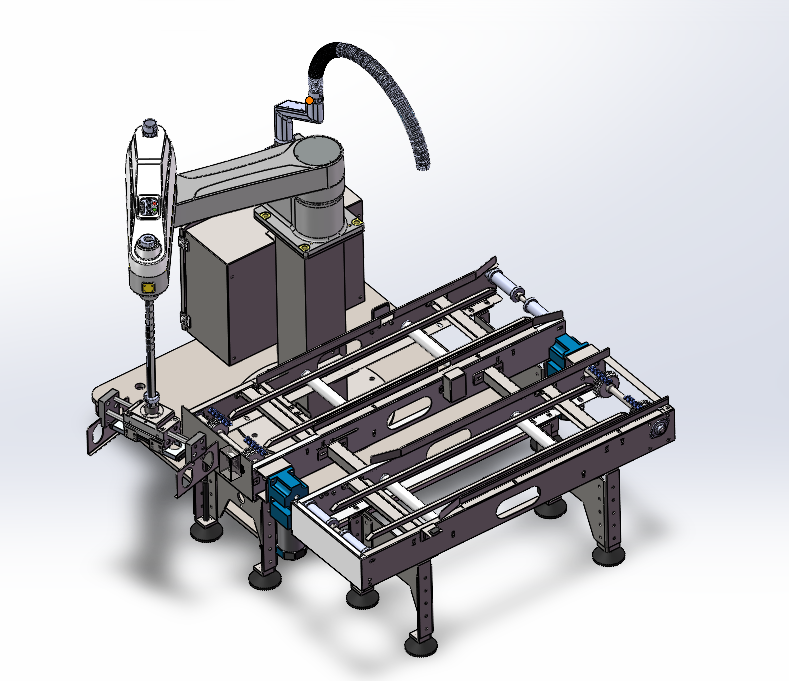

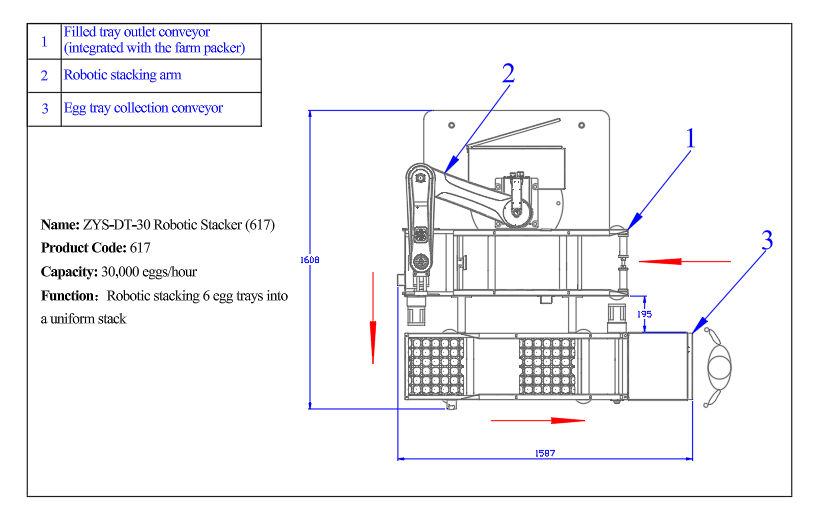

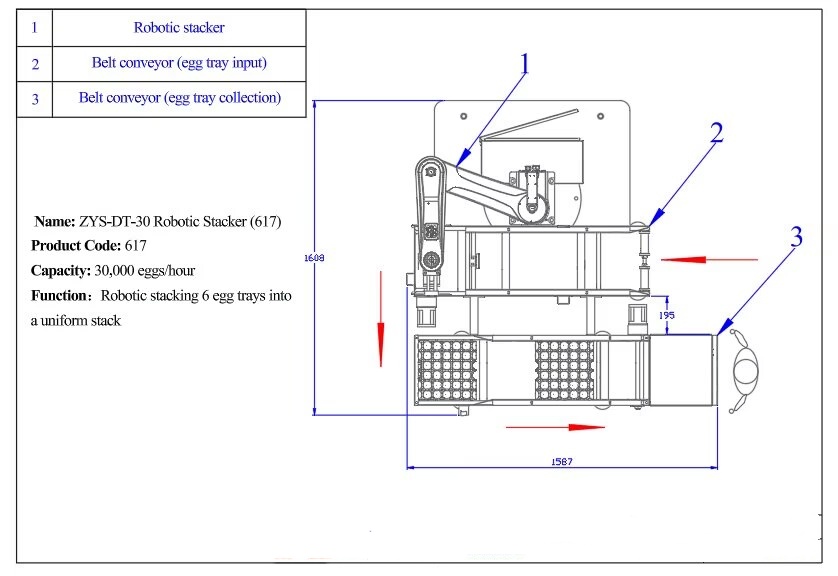

The ZENYER 617 robotic egg tray stacking system is an automated solution designed to integrate seamlessly with egg farm packers, consist of a robotic arm, two belt conveyors, an HMI touchscreen control panel and a safety net guard.
Operators can easily manage the system using an intuitive HMI touchscreen. It boasts a capacity of 30,000 eggs per hour and offers several benefits:
* Increased egg collection efficiency
* Reduced labor costs
* Precision positioning and gentle handling
* Reduced egg breakage rate
* Automatic overflow alarm and stop
The ZENYER 617 robotic stacker is an ideal solution for egg tray stacking at the tail of a farm packer, particularly when collecting eggs from medium to large-sized egg farms.
Robotic Tray Stacker
Model
ZYS-DT-30
Product code
617
Capacity
1,000 trays/hour (30,000 eggs/hour)
Power
2.17KW (exclude air compressor)
Voltage
220~240V, Single phase, 50HZ
Air compressor
3KW (recommeded)
Control panel
HMI touchscreen
Design purpose
Designed to integrate seamlessly with egg farm packers
Function
Robotic stacking 6 egg trays into a uniform stack
Price of the ZENYER 617 Robotic Stacker: Only $41,800.00
ZYS-DT-30 Robotic Stacker (617) Brochure
