Egg lifter & loader

Name:ZYS-DS60/300 Accumulator (605A)

Product Code: 605A

Capacity: 10000 eggs/hour

Function: Roller conveyor & Candling & Orientator



Details


Features:

-- Includes a roller conveyor, candler and orientator.

-- Can vacuum load 30 eggs onto the accumulator at a time by using the 602 vacuum egg lifter.

-- When eggs pass through the candling section, the cracked, dirty or otherwise unqualified eggs can be inspected through LED lights and be picked out manually. The candler includes a candling cover as well as a mirror to enforce the candling result.

-- The orientator would direct 6 lines of eggs into 1 line and transfer the eggs onto single conveyor egg washer or egg grader smoothly.

-- Equipped with a control panel, you can adjust their speeds through the up and down arrows to match the capacity of other equipment which it would be used with.

-- Ideally, connect with the ZENYER 104A egg grader, the 104B egg grader, or the 202A egg washer.

Egg accumulator

 Model

ZYS-DS60/300

Product code

605A

Power

398W, 50HZ

Voltage

220-240V, single phase

Length* Width* Height

3.03*1.28*2 M

Net weight

200 kg

Gross weight

350 kg

Function

Roller conveyor & candling & orientator and optional vacuum egg lifter

Zenyer 605A accumulator

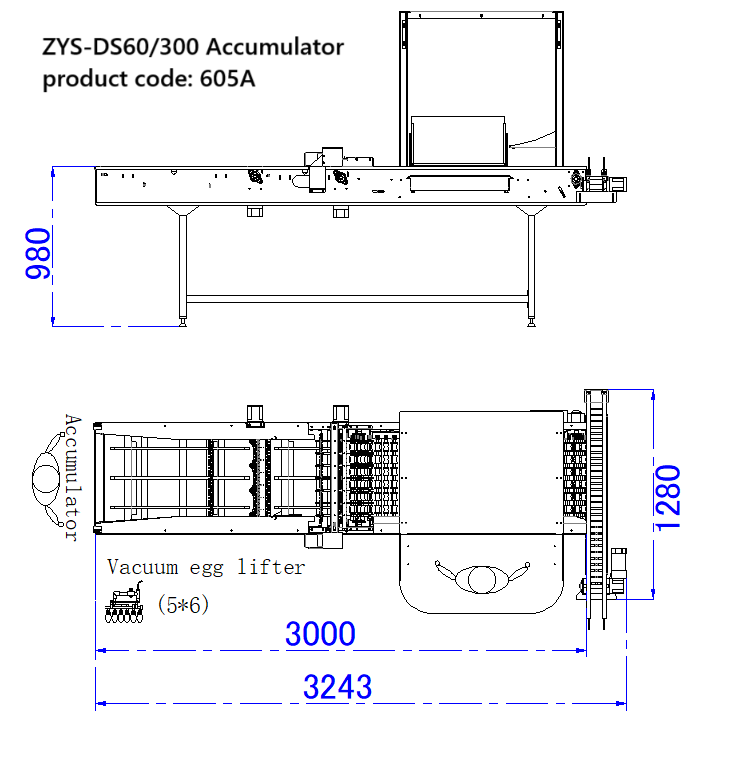

Floor plan

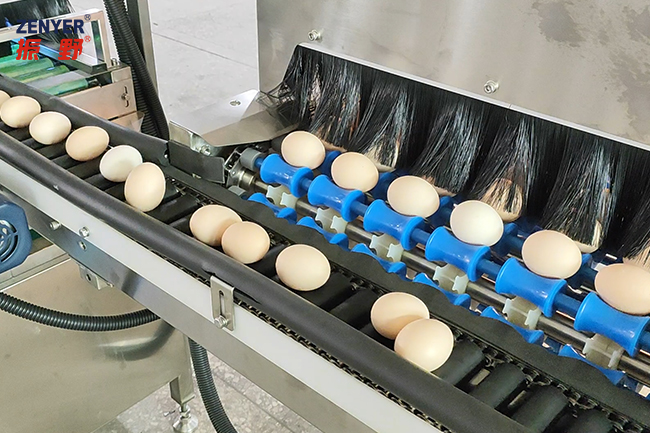

Orientator (direct 6 lines into 1 line)

The 6-row candler with a candling cover and mirror

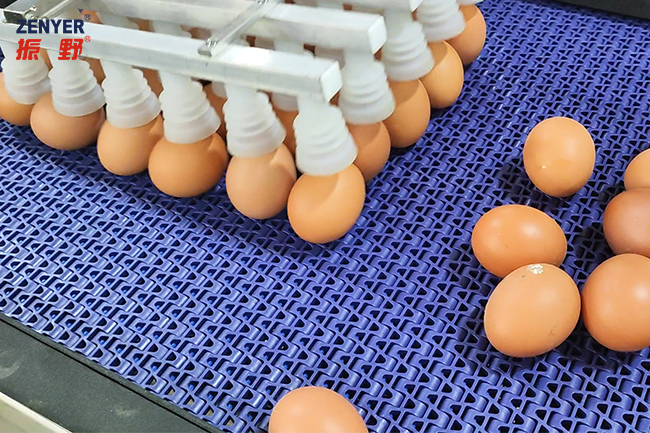

Zenyer 602 vacuum egg lifter
Vacuum lifting 30 eggs per time

Control panel




Price of ZENYER 605A accumulator: $16,500.00

Price including GST



 (Pre-order)





  Optional:

-- The 602 Vacuum egg lifter: Only $2,200.00



ZYS-DS60/300 Accumulator (605A) Brochure
